Exhaust pipe front, installing

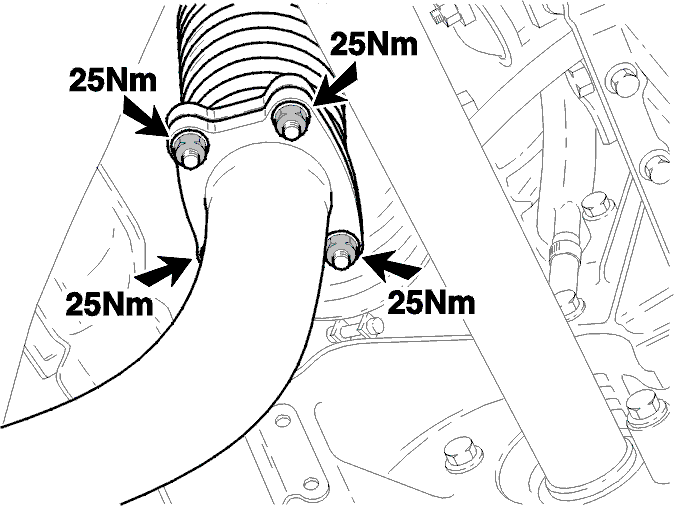

Fig 1: Installing Front Exhaust Pipe On Exhaust Manifold

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the front exhaust pipe.

Use a new gasket.

Tighten to 25 Nm  .

Install the engine cover.
