Air bypass valve, replacing

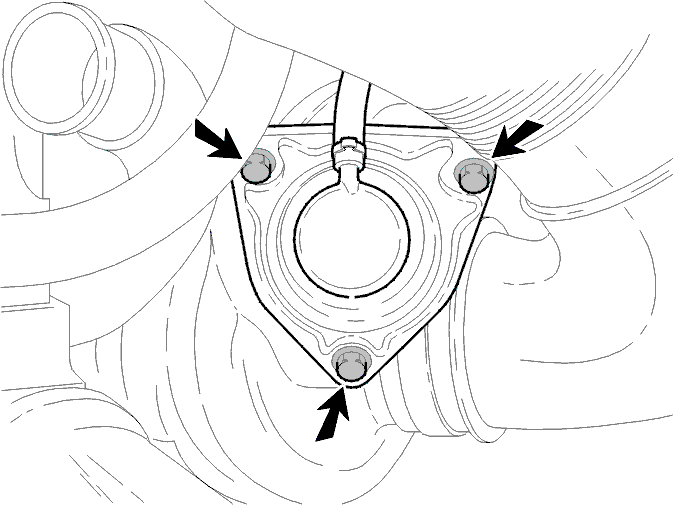

Fig 1: Replacing Air Bypass Valve

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• the three screws
• the membrane and the cover.

Check the membrane valve.

Install the membrane and the cover.

Tighten the three screws.
