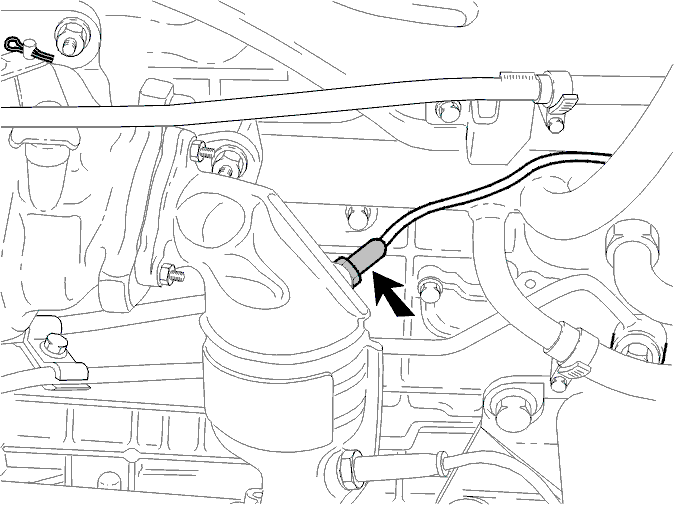

Heated oxygen sensor (HO2S) front (upper), installing
- Install a new sealing ring
- Apply copper paste (P/N 1161035-9) to the entire length of the screw thread
- To avoid damage from twisting to the cable harness for the heated oxygen sensor (HO2S), turn the probe approximately 4 turns counter-clockwise before inserting it
- Install the heated oxygen sensor (HO2S). Tighten to 55 Nm
- Install the heat shield on the body.
Raise the car.
