Removing the boost pressure control (BPC) valve

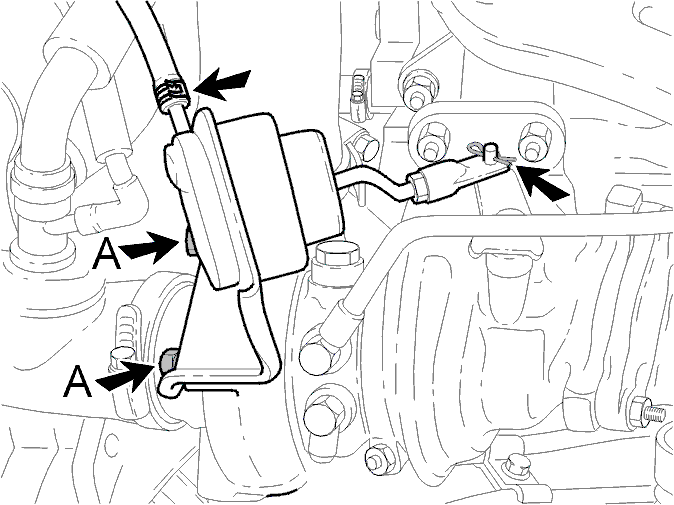

Fig 1: Removing/Installing Boost Pressure Control (BPC) Valve

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• the locking pin
• the two screws (A)
• the vacuum hose from the valve
• the boost pressure control (BPC) valve. Turn the boost pressure control (BPC) valve when removing it. This will also release the vacuum hose.
