Intake And Exhaust System - Removal, Replacement And Installation (644 Body)
>>
Intake & Exhaust (B4204T2 CVVT; 2000)
>>
Replacing lambda sond rear
>>
Removing heated oxygen sensor (HO2S)
Removing heated oxygen sensor (HO2S)

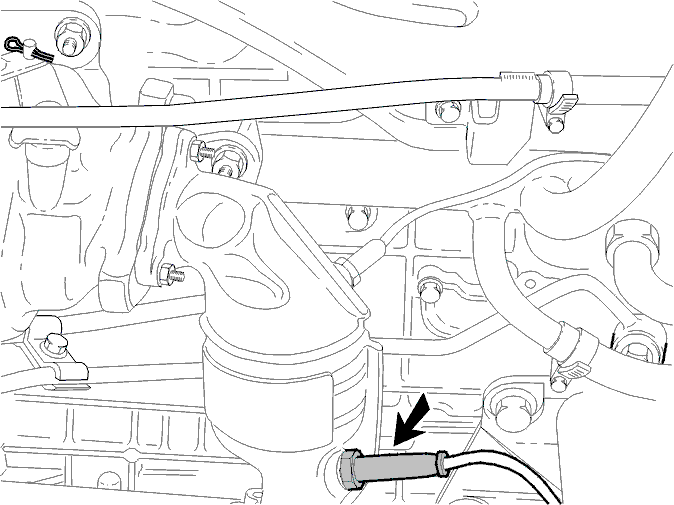

Fig 1: Removing Heated Oxygen Sensor (HO2S)
Courtesy of VOLVO CARS OF NORTH AMERICA.
Apply rust removing agent
Remove heated oxygen sensor (HO2S)
Remove the sealing ring.
