Installing heated oxygen sensor (HO2S) cable and connector

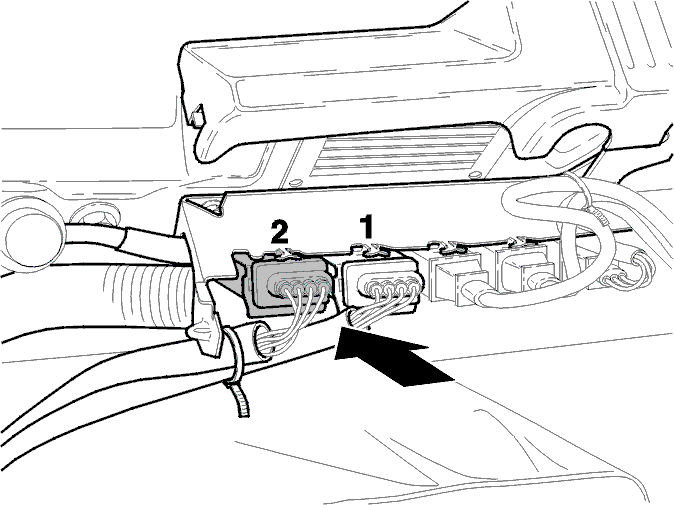

Fig 1: Removing/Installing Heated Oxygen Sensor (HO2S) Wiring
GLL114908Courtesy of VOLVO CARS OF NORTH AMERICA.
NOTE:

Adjust wiring connections so that it does not come into contact with the exhaust system.
