Installing oil trap

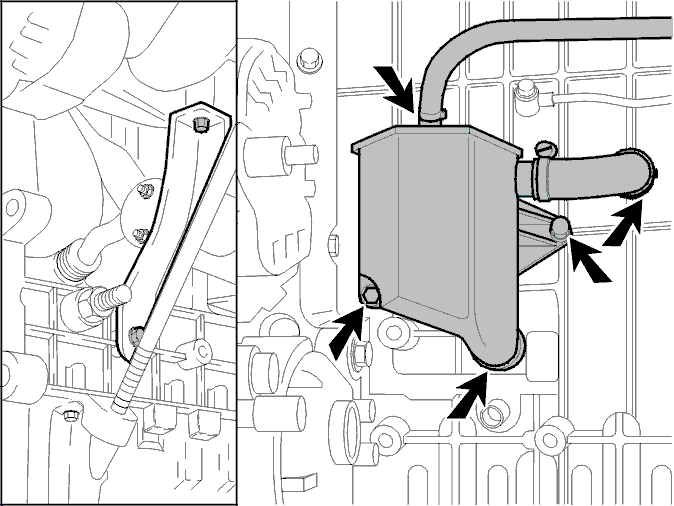

Fig 1: Identifying Oil Trap Hoses
GLL114699Courtesy of VOLVO CARS OF NORTH AMERICA.

Clean the hoses with compressed air.

Connect the two oil trap hoses to the hose stubs on the engine block.

Use a new  hose clip for the top hose and tighten the bottom one.

Install the bolts and tighten them to 20 Nm  .

Install the intake manifold mounting; loosely install the bottom bolt.

Use new sealing rings.
