Windshield wiper arm
>>
Installing windshield wiper arms
Installing windshield wiper arms

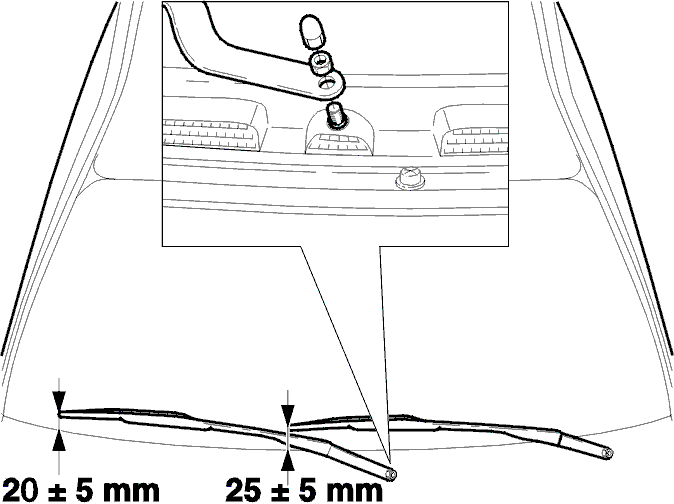

Fig 1: Installing Windshield Wiper Arms
Courtesy of VOLVO CARS OF NORTH AMERICA.
Install the wiper arm.
Install the nut but do not tighten it.
Adjust the position of the wiper arm as shown.
Tighten the nut: tightening torques = 16 Nm.
Reinstall the cover.
Courtesy of VOLVO CARS OF NORTH AMERICA.
