Replacing the windshield washer pump: Removal

Replace the windshield washer pump from underneath the car.

Fig 1: Removing Air Baffle

Courtesy of VOLVO CARS OF NORTH AMERICA.

Ignition off.

Remove the air baffle.

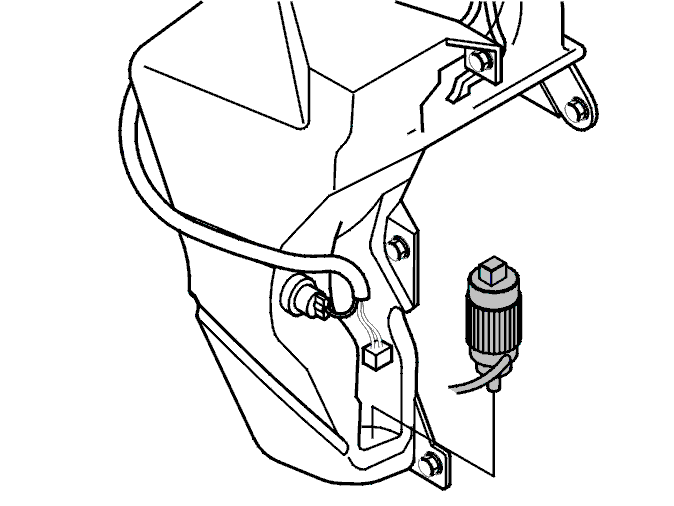

Fig 2: Replacing Windshield Washer Pump

Courtesy of VOLVO CARS OF NORTH AMERICA.

Disconnect the connector and hose.

Remove the pump. First pull the pump out at the upper edge. Then pull straight up.

NOTE: When removing the pump, the windshield washer fluid runs out.
