Removing the stop lamp switch

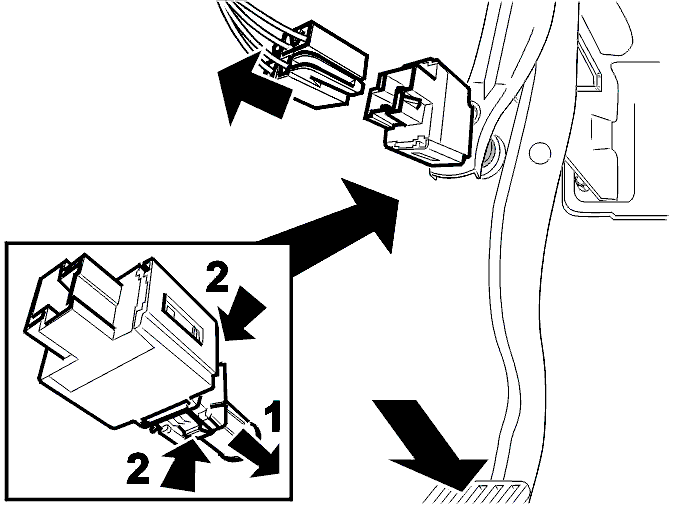

Fig 1: Removing Stop Lamp Switch

Courtesy of VOLVO CARS OF NORTH AMERICA.

Press the stop (brake) lamp switch, from the side of the connector, completely forwards.

NOTE: A number of clicks should be heard and felt when pressing.

Disconnect the connector.

Press the brake pedal as far down as possible.

Pull the white bushing (1) as far forward as possible.

Press in the two locking lugs (2) on the reverse. Remove the stop lamp switch.
