Baby Insert, Child Seat

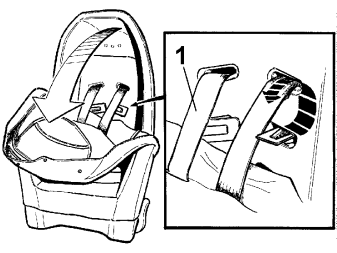

Fig 1: Remove Shoulder Straps By Pulling Through Holes

GLL123050

Courtesy of VOLVO CARS OF NORTH AMERICA.

Applies to 5-point seat belts

Release upholstery at upper edge and pull forward.
Note which group of holes the shoulder straps are routed through.
Remove the shoulder straps (1) by pulling through the holes.

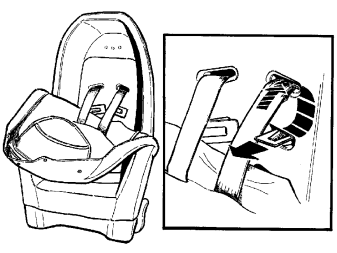

Fig 2: Thread Shoulder Strap Locking Washers Through Holes

GLL123051

Courtesy of VOLVO CARS OF NORTH AMERICA.

Applies to 5-point seat belts

Install the baby insert.
At the appropriate height thread the shoulder straps through the holes in insert, upholstery and seat back.
Thread the shoulder strap locking washers through the holes as shown.
Check that the locking washers are correctly positioned.

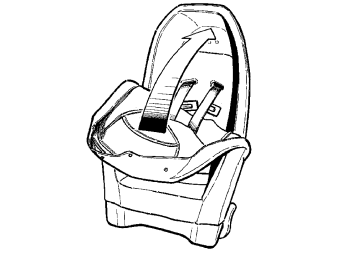

Fig 3: Fold Upholstery Back And Press Into Place With Two Clips

GLL123052

Courtesy of VOLVO CARS OF NORTH AMERICA.

Applies to 5-point seat belts

Fold the upholstery back and press into place with the two clips.
Straighten the upholstery.

Fig 4: Thread Child Seat Harness Through Holes In Baby Insert

GLL110031

Courtesy of VOLVO CARS OF NORTH AMERICA.

Applies to 4-point seat belts

Thread the child seat harness through the holes in the baby insert.

Fig 5: Baby Insert Positioned Correctly In Child Seat

GLL110032

Courtesy of VOLVO CARS OF NORTH AMERICA.

Applies to 4-point seat belts

Position the baby insert correctly in the child seat and pull the harness lap belt forward.

Fig 6: Adjust Baby Insert According To Child's Height By Moving The Upper Collar Upwards Or Downwards

GLL110033

Courtesy of VOLVO CARS OF NORTH AMERICA.

Applies to both the belts

Adjust the baby insert according to the child's height by moving the upper collar upwards or downwards.
