Adjustment Of Light Propagation: Adjustment

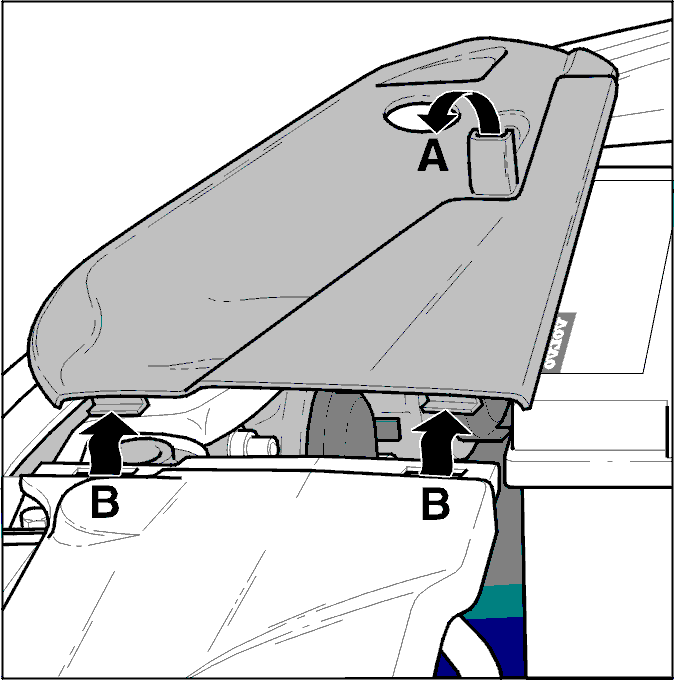

Fig 1: Removing Cover

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Ignition and low beam on.
  CAUTION: Always adjust the light propagation with low beam on.
• Check the amperage so there are enough current for correct light propagation
• Undo the cap.

Fig 2: Adjusting Headlamp Alignment

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Adjust the light propagation in vertical height (Y) by using a socket screw as shown.
• Adjust the light propagation laterally (X) by using a socket screw.

  HINT: Use socket screw 6 mm.

Fig 3: Adjusting Headlamp Light Distribution

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE: Headlamp beam adjustment must be carried out according to the relevant national statutory requirements.
