Adjusting headlamp alignment

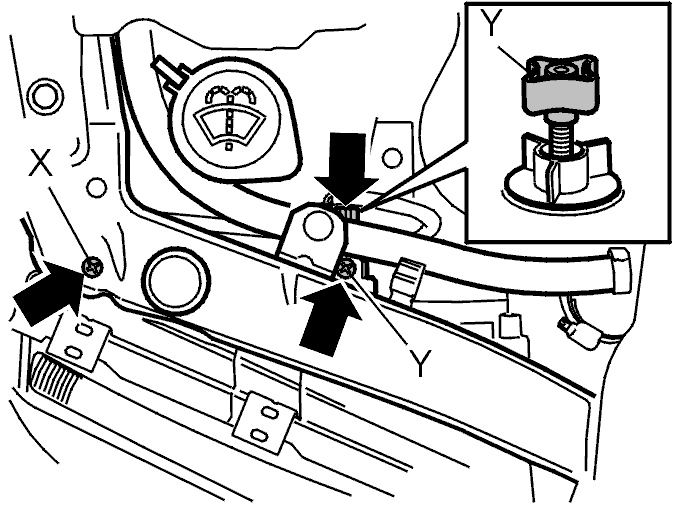

Fig 1: Adjusting Headlamp Alignment

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 2: Adjusting Headlamp Light Distribution

Courtesy of VOLVO CARS OF NORTH AMERICA.

Adjust:

• the vertical light distribution (Y) using the 6 mm adjustment screw
• the horizontal light distribution (X) using the 6 mm adjustment screw.

HINT: Use a 6 mm drill bit.
