Adjusting fog lamps

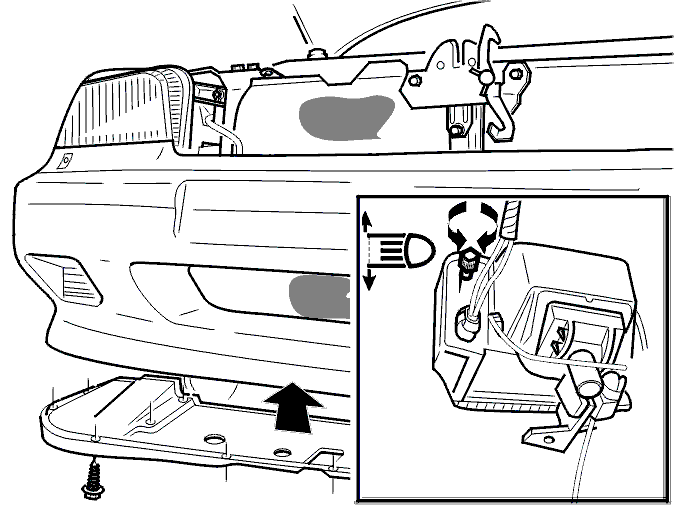

Fig 1: Removing Splash Guard And Adjusting Fog Lamp

Courtesy of VOLVO CARS OF NORTH AMERICA.

The fog lamps can be adjusted with the screw as shown, according to the statutory national requirements.

• Remove the splash guard
• Adjust the fog lamps
• Install the splash guard.
