Removing The Hood Release Catch (Right-Hand Side)

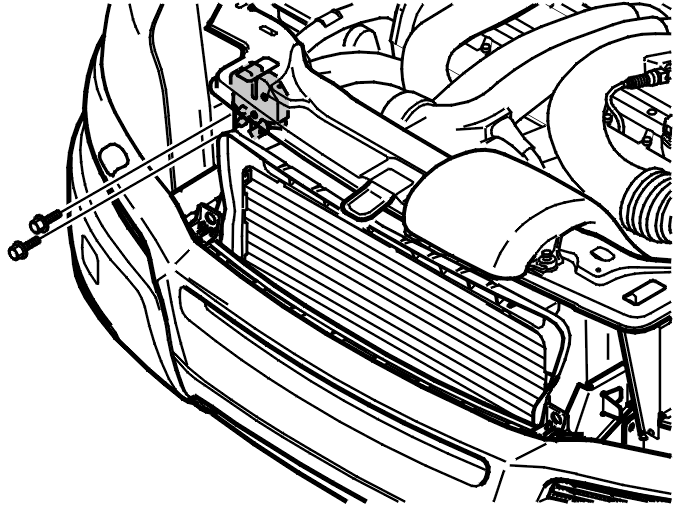

Fig 1: Removing The Hood Release Catch (Right-Hand Side)

Courtesy of VOLVO CARS CORPORATION

Remove:

• the headlamp. See HEADLIGHT/BULB, REPLACING (2003-2006) or HEADLIGHT/BULB, REPLACING (2007-2012).
• the 2 screws for the hood catch.

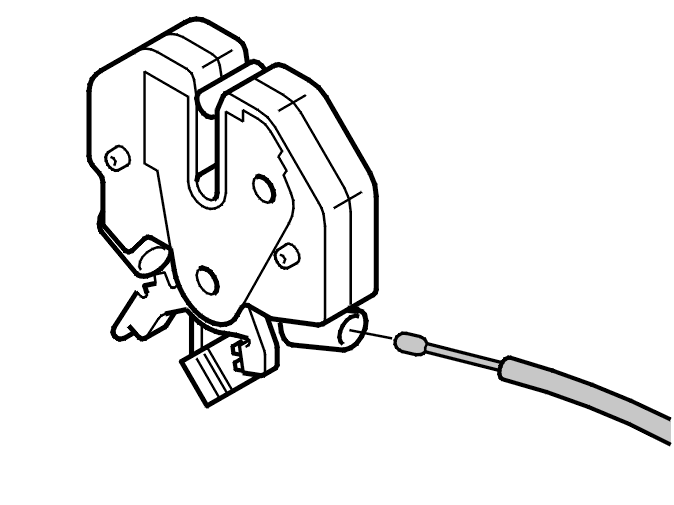

Fig 2: Unhooking The Lock Cable

Courtesy of VOLVO CARS CORPORATION

Move the hood catch to one side.

Unhook the cable.

Replace the lock.
