Removing The Front Wing

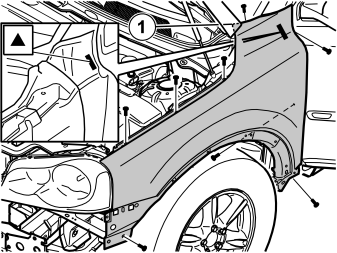

Fig 1: Identifying Upper Rear Corner Rubber

Courtesy of VOLVO CARS CORPORATION

Remove:

• the rubber at the upper rear corner (1) by pressing down and lifting out the front corner first. Repeat the procedure for the rear section
• the bumper. See CASING BUMPER FRONT, REPLACING
• the bracket for the bumper
• the wing liner which is secured by three plastic nuts and twelve rivets. To remove the rivets, see REMOVING RIVET
• the wing edge is secured with double-sided adhesive tape, five clips and the rivets securing the wing lining
• the front section of the plastic sill.

Slacken off the eight screws for the front wing (see the illustration).
