Removing The Fender Extension

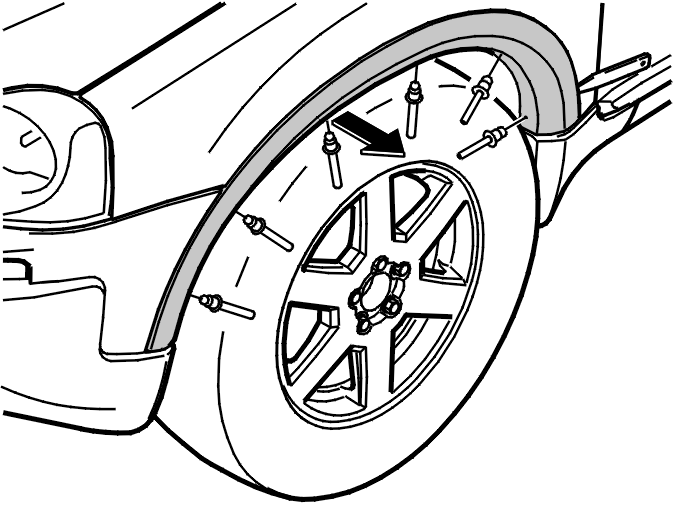

Fig 1: Removing Front Inner Fender

Courtesy of VOLVO CARS CORPORATION

Remove:

• the pop rivets from the front inner fender, 6 x, according to REMOVING RIVET .

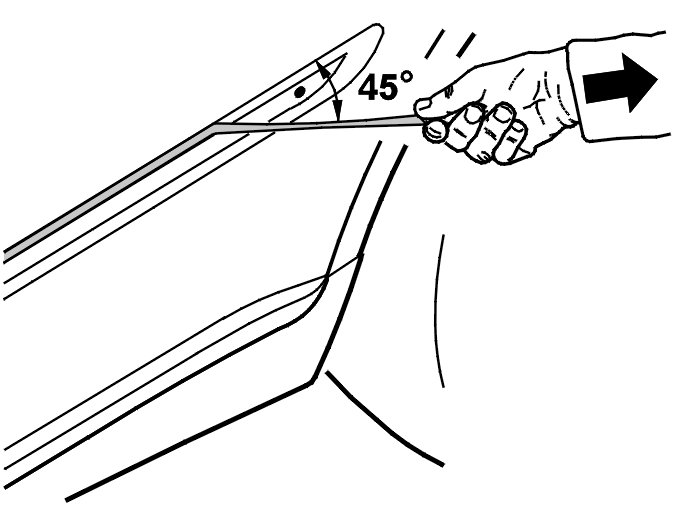

Fig 2: Removing Tape Residue

Courtesy of VOLVO CARS CORPORATION

Remove the covered clips and the double-sided tape by pulling straight out.

The front moulding has five clips and the rear has six clips.

HINT: Use a weatherstrip tool to facilitate removal. Start at the front or rear edge of the moulding.

Remove any tape residue. Use: see 9512942 and: see 9512949 .
