Removing fender liner

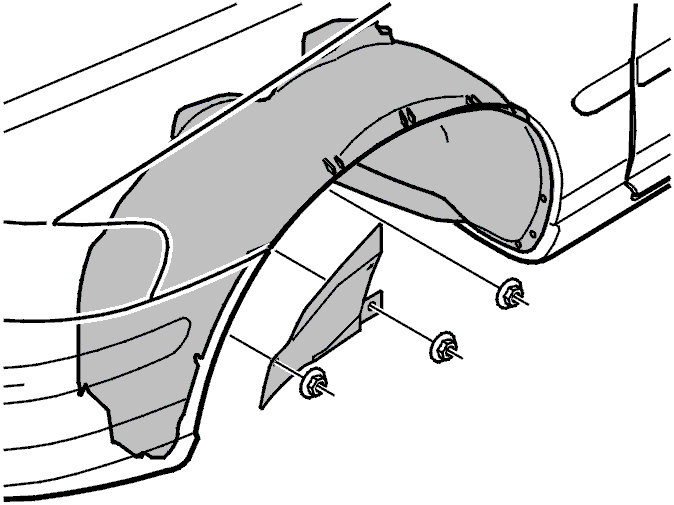

Fig 1: Identifying Fender Liner Nuts

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Remove the three nuts.

Fig 2: Identifying Blind Rivets

Courtesy of VOLVO CARS OF NORTH AMERICA.

1. Remove the protective plate
2. Angle up the cover. Tape the cover in position while carrying out work.

Remove:

• the four blind rivets at the front edge
• the five blind rivets at the rear edge.

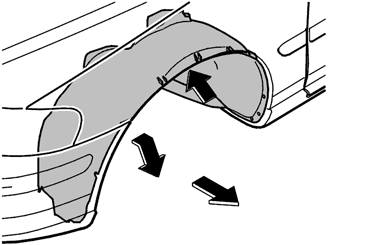

Fig 3: Identifying Fender Liner Pressed Inwards To Detach Hooks

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Release the fender liner from the welded nuts
• Press the fender liner inwards to detach the hooks.
