Removing the bumper casing

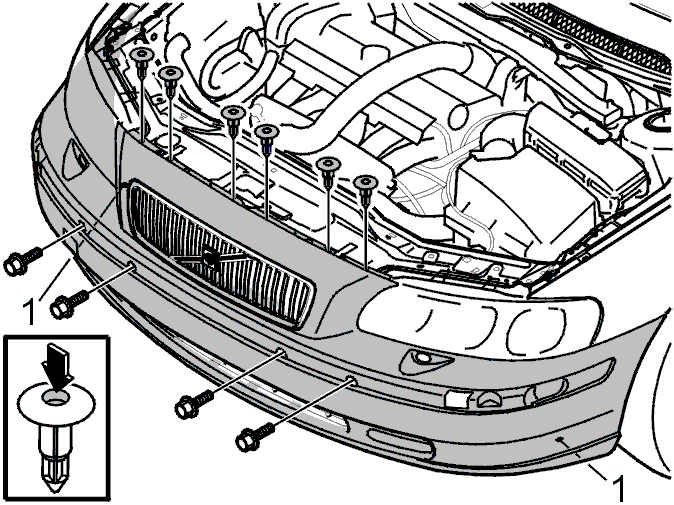

Fig 1: Bumper Casing Assembly

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• the 2 nuts for the headlamp
• the two screws.
• the two blind rivets (1).
• the six clips.

  Press down the center section.

Fig 2: Identifying Screw Pressed Backwards To Release Bumper Bracket

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Remove the bumper.
• Separate the connector for the fog lamp on the left-hand side.
• Remove the casing.

Fig 3: Removing Bumper

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• the 2 screws for the slide mounting.
• Remove the bumper.
• Separate the connector on the left-hand side.
• Remove the casing.
