Installing service clips

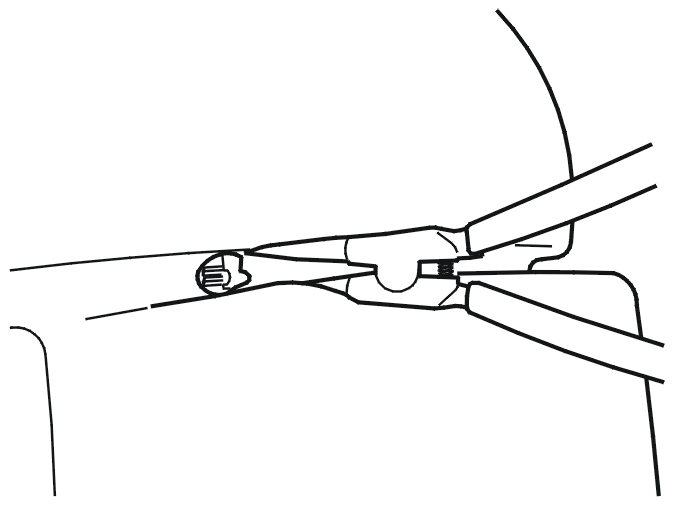

Fig 1: Installing Service Clip (1 Of 3)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fold apart the foam rubber slightly on one side of the clip.

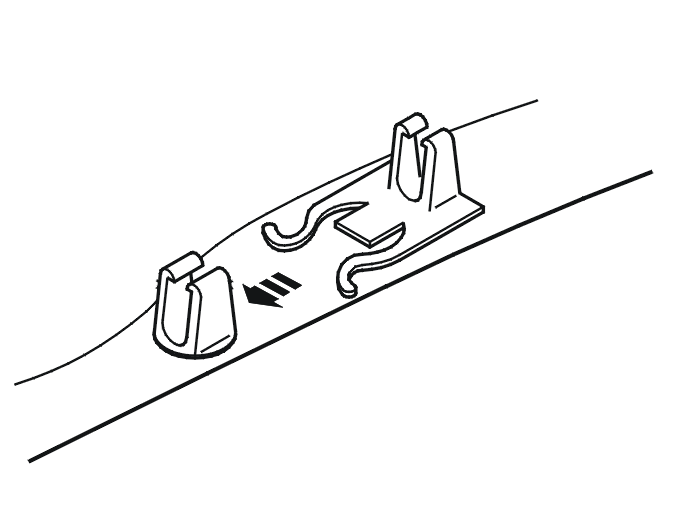

Fig 2: Installing Service Clip (2 Of 3)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Take the service clip and press it into place under the flange on the old clip.

Check that it is fitted in line with the old clip and that it ends up in position.

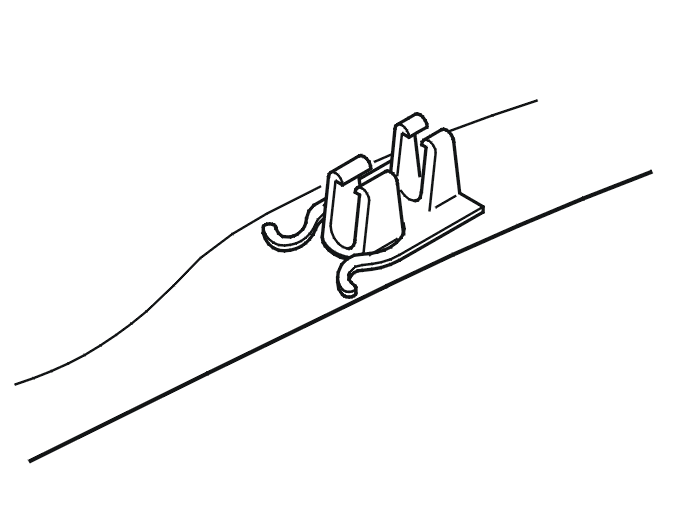

Fig 3: Installing Service Clip (3 Of 3)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fold back the foam rubber.
