Continue installing the brake and clutch components

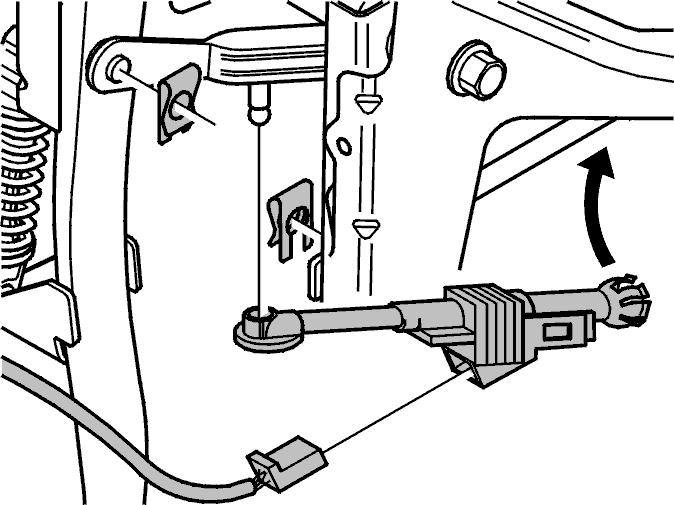

Fig 1: Installing Pedal Position Sensor

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

• the pedal position sensor (between the clutch pedal and the firewall)
• the clips for brake and the clutch pedal.

Check the function of the brake and clutch pedal and pedal position sensor.

Reinstall the soundproofing panel.
