Removing rear bumper

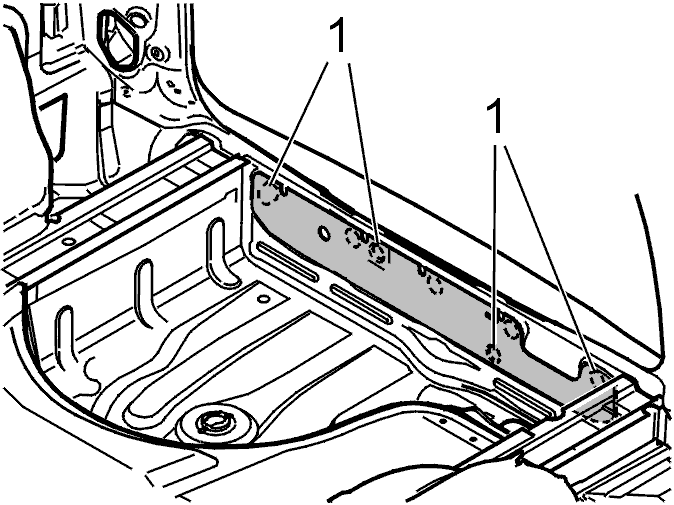

Fig 1: Identifying Sound Proofing And Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• Fold up the floor hatch
• the battery. See Battery, replacing
• the cover and soundproofing on the right
• the base plate. See Base plate and toolbox or the subwoofer (if applicable). See Subwoofer and amplifier for the subwoofer
• the sound proofing (1) and four screws.

  Use a 13 mm long socket

• NOTE:

  Do not drop the nuts. They will be difficult to retrieve.

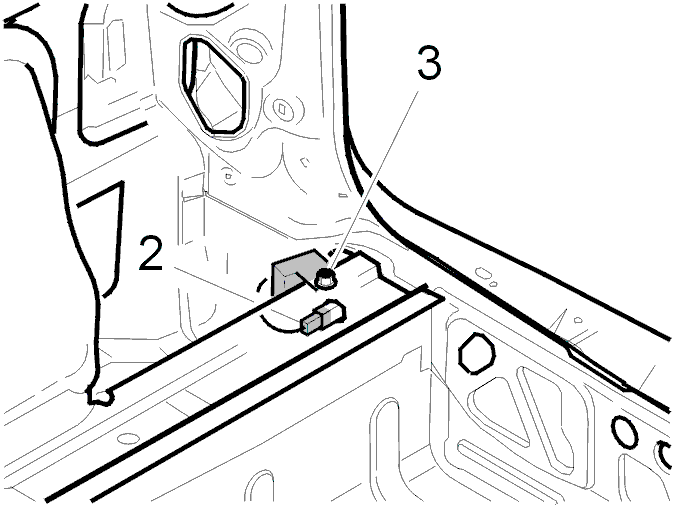

Fig 2: Identifying Screw And Bracket From Antenna Amplifier

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Disconnect the connector from the antenna amplifier or remove the screw (3) and remove the bracket.

Fig 3: Identifying Rivets, Fender & Wheel Arch

Courtesy of VOLVO CARS OF NORTH AMERICA.

• the four clips on the underneath of the bumper
• Drill out one rivet from each side (4) where the edge of the fender meets the wheel arch fender liner. See.

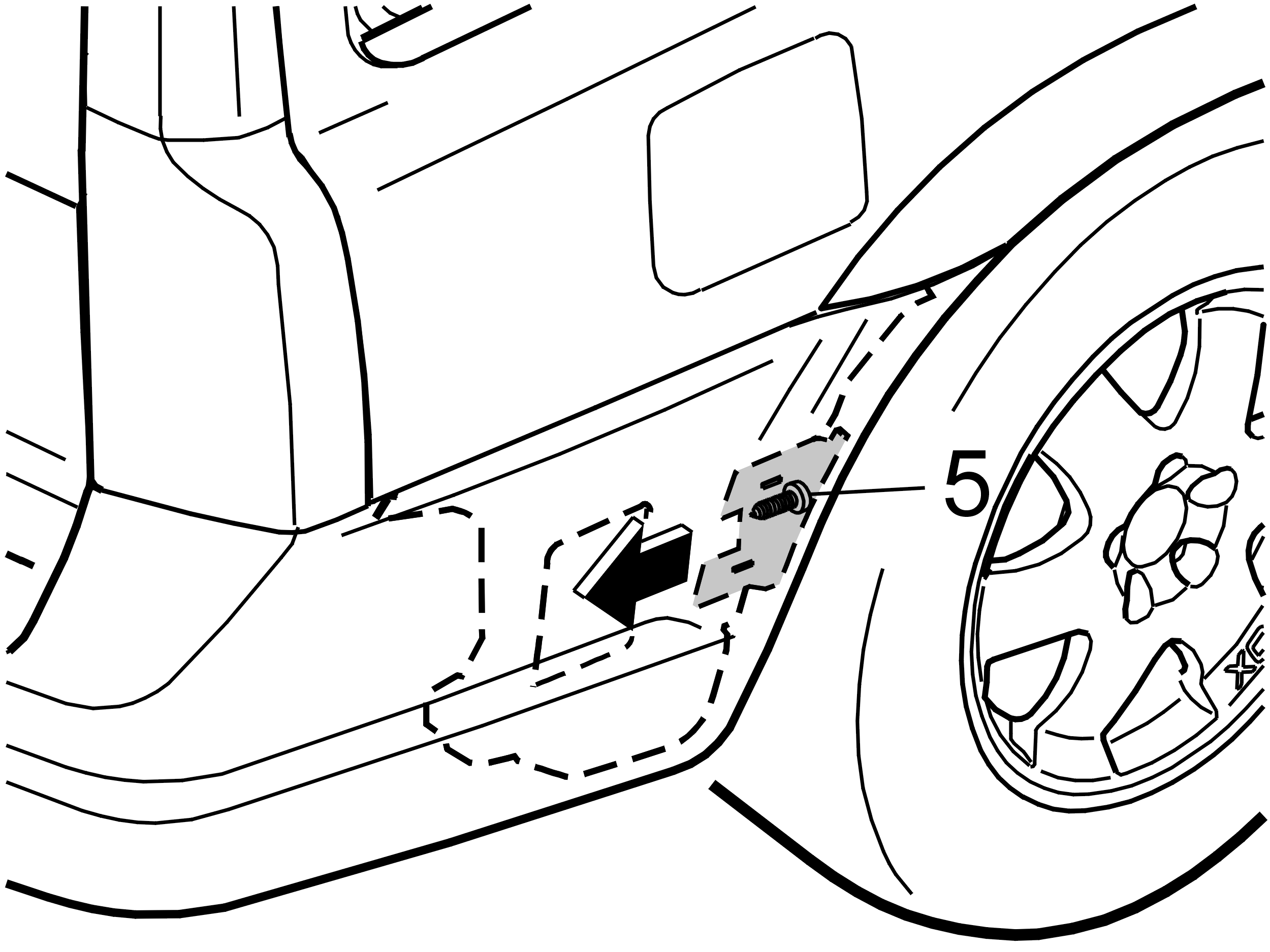

Fig 4: Locating Screws To Slacken Off

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Slacken off one screw on each side (5), leaving each screw held in place by three threads
• Press the screw backwards so that the slide mounting releases
• Press the screw so that the screw head bottoms out.

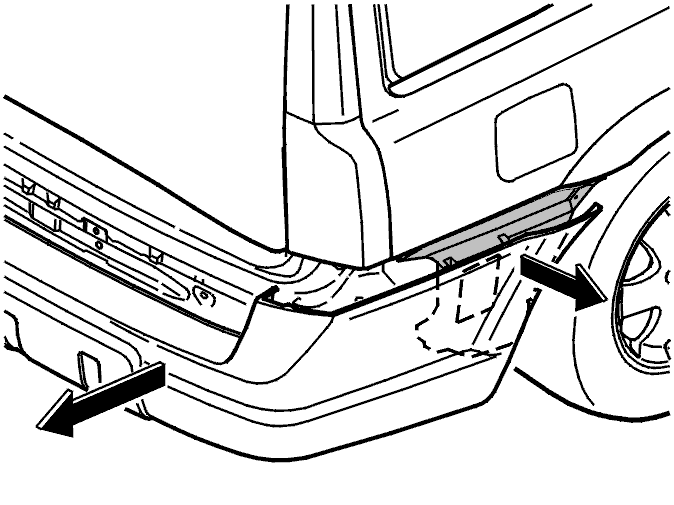

Fig 5: Identifying Bumper Pulled Back While Both Sides Pulled Out

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Pull the bumper backwards while pulling both the sides outwards so that the edges release from the slide mounting.

  HINT: Two people are required for this task.
