Installing the rear bumper

Fig 1: Identifying Lugs Aligned On Bumper Channels

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

In reverse order.

NOTE:

Align the lugs (6) on the bumper in the channels (7) on the bracket for the bumper.

Press at the top so that the lugs secure.

HINT: Two people are required for this task.

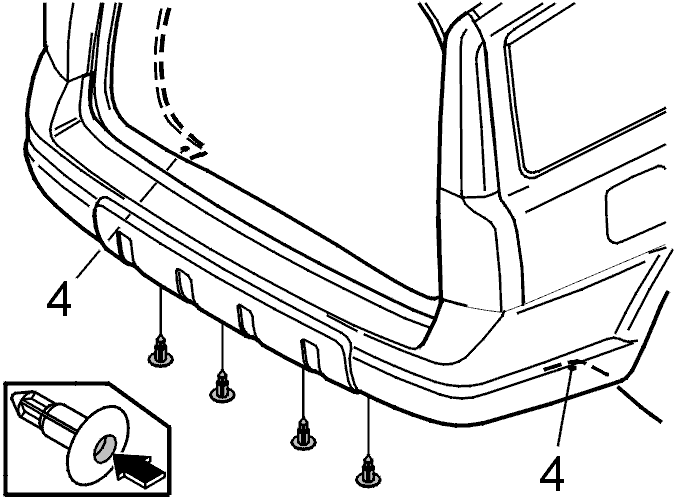

Fig 2: Identifying Rivets, Fender & Wheel Arch

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE:

Replace the rivets (4) with spring nuts and screws.

Fig 3: Identifying Spring Nut

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install 1 spring nut on each side.

Fig 4: Identifying Screw On Each Side

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install 1 screw on each side. Tighten.
