Transferring the rear section

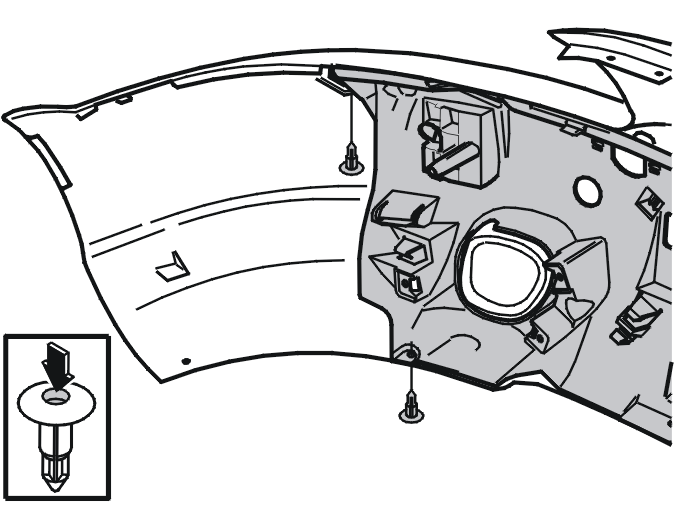

Fig 1: Identifying Clip Locations

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• the clips, 2 on each side.

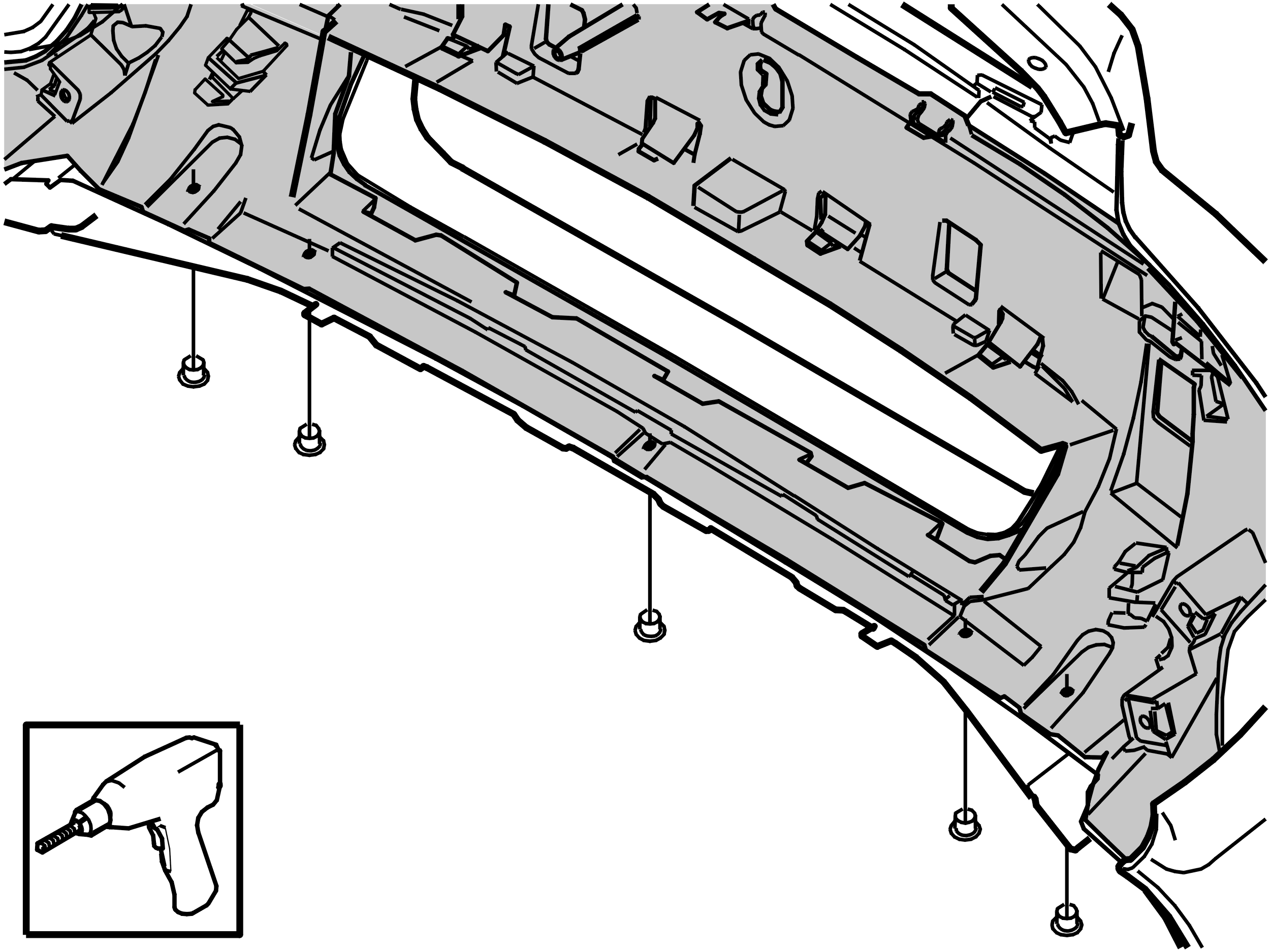

Fig 2: Identifying Rivet Locations

Courtesy of VOLVO CARS OF NORTH AMERICA.

• the 5 x rivets. See: Removing rivet .

Unhook the rear section.
