Body And Frame
>>
Bracket for the rear bumper
>>
Removing the slide mounting
Removing the slide mounting

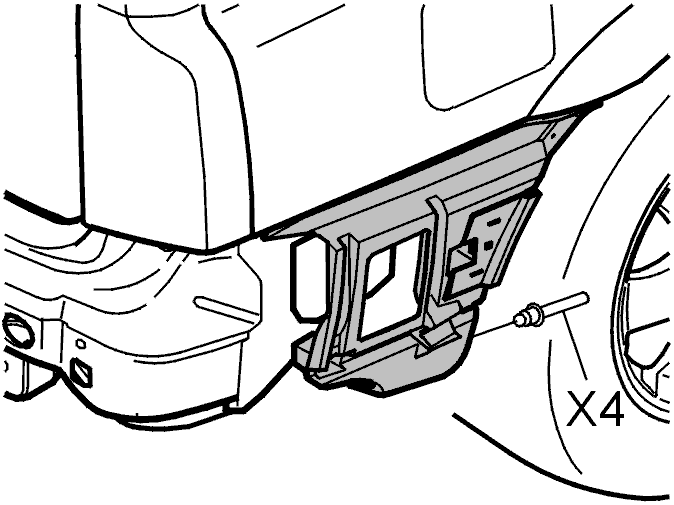

Fig 1: Identifying Mounting Blind Rivets
Courtesy of VOLVO CARS OF NORTH AMERICA.
Remove:
the rear bumper according to
Bumper rear, replacing
The four blind rivets according to
Removing rivets
Five screws.

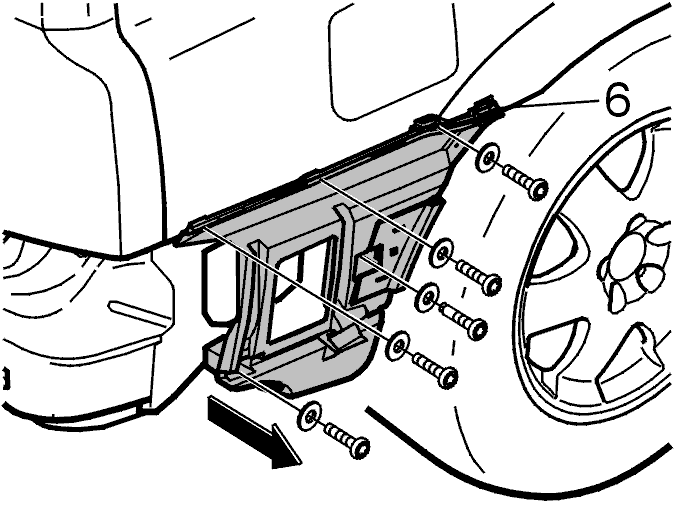

Fig 2: Identifying Slide Mounting Screws
Courtesy of VOLVO CARS OF NORTH AMERICA.
