Replacing (Passenger Side)

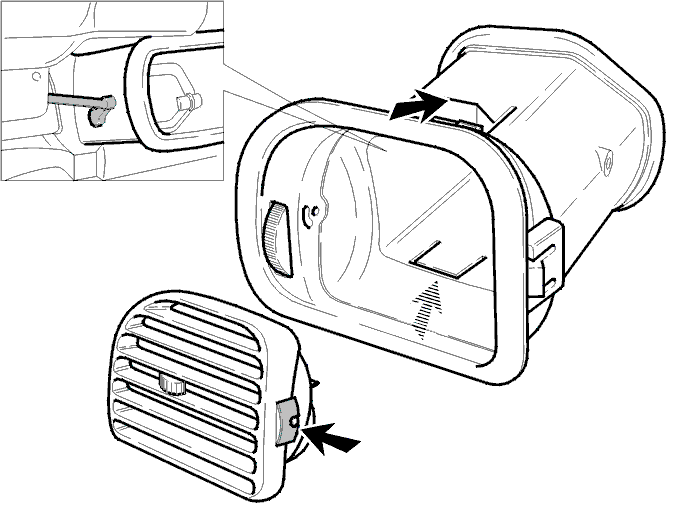

Fig 1: Removing The Ventilation Vent On The Passenger Side

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Press the shutter to one side with a knife (to the side where the control is positioned). Remove the shutter
• Press in the catches at the top and at the bottom. Pull the vent out of the dashboard
• Press the catches on the side. Carefully remove the vent.

• Install in reverse order.

During installation, ensure that the spring clip is correctly positioned.
