Replacing the ventilation vents in the dashboard
>>
Replacing (Driver's Side)
Replacing (Driver's Side)

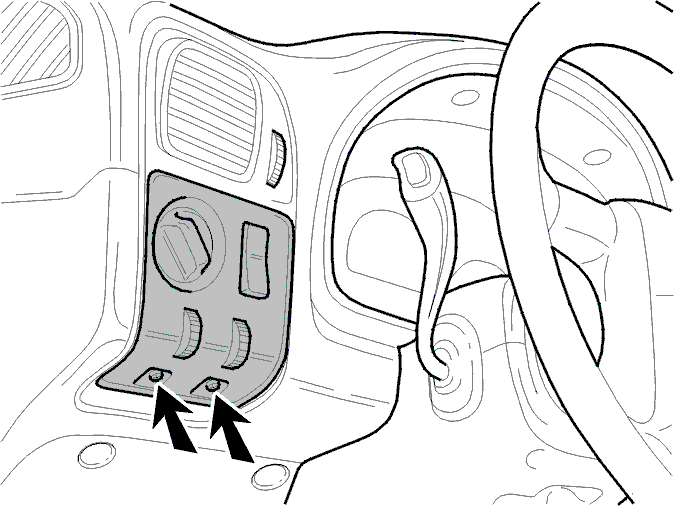

Fig 1: Light Switch Screws
Courtesy of VOLVO CARS OF NORTH AMERICA.
Remove the two screws on the underneath of the light switch
Pull the panel downwards
Disconnect the connectors.
