Removing SIPS bags

Preparations

• Remove the backrest upholstery. See Removing the backrest upholstery .

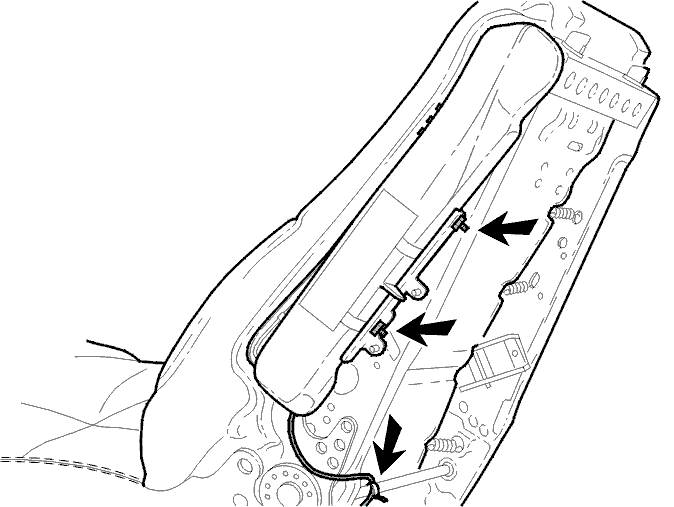

Fig 1: Removing SIPS Airbag From Backrest

Courtesy of VOLVO CARS OF NORTH AMERICA.

Removing the SIPS airbag from the backrest

Make a note of the routing of the SRS ignition cable and the location of the cable clips.

Cut off the cable clips.

Remove the 2 mounting screws from the inside.

Remove the SIPS bag from the frame by pulling the bag forwards.

Disconnect the connector from the seat frame.
