Removing the front center console

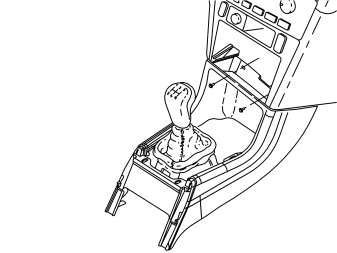

Fig 1: Front Center Console

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the rear center console according to Rear center console .

Make a note of the anti-theft radio code.

Remove:

• the radio and connector
• the two screws at the front edge
• the front center console with a twisting movement.
