Removing the loudspeaker from the dashboard

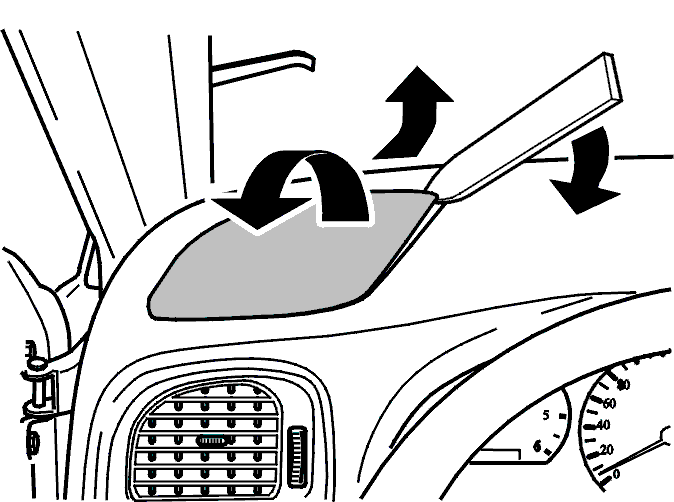

Fig 1: Loudspeaker Grille

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Lift the loudspeaker grille at the front edge by pressing the lips forwards. Use weatherstrip tool 9814071
• Remove the loudspeaker grille
• Cars with ECC: remove the sun sensor
• Lift the loudspeaker out of the dashboard. Disconnect the connector.
