Installing the dashboard center console

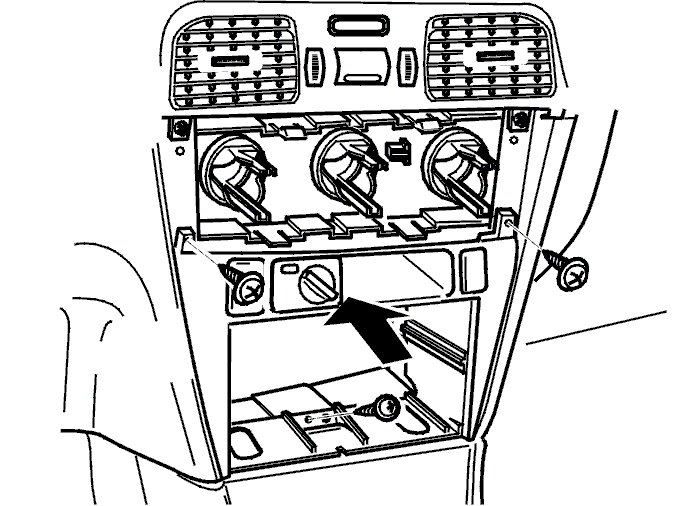

Fig 1: Installing The Dashboard Console
GLL117404Courtesy of VOLVO CARS OF NORTH AMERICA.

Route the wiring. Connect the connector.

Install the console.

Install the two upper screws.

Tighten the control panel for the heating system.

Install the lower screw.
