Installing the combined instrument panel

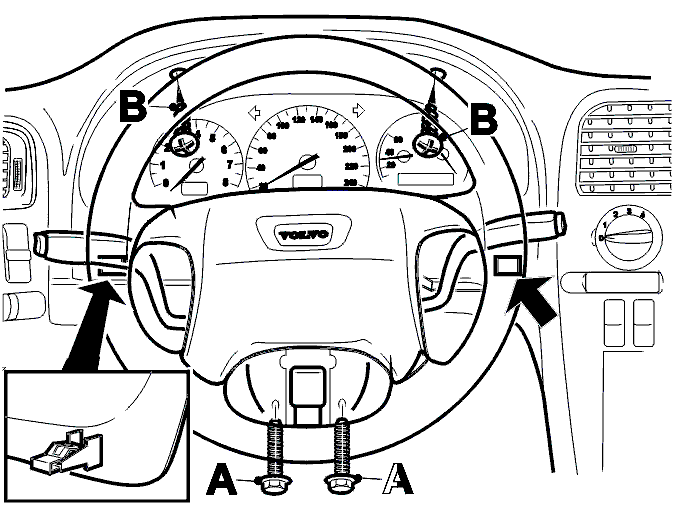

Fig 1: Steering Column And DIM Casing Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Position the combined instrument panel.

Check that the connectors and the speedometer cable (if applicable) are correct for the combined instrument panel.

Press the combined instrument panel into place.

Install:

• the surround around the combined instrument panel
• the two screws (B) without sharp tips.

Lift up the steering shaft.

Install the two screws (A). Tighten to 21 Nm  .
