Installing the central electronic module (CEM)

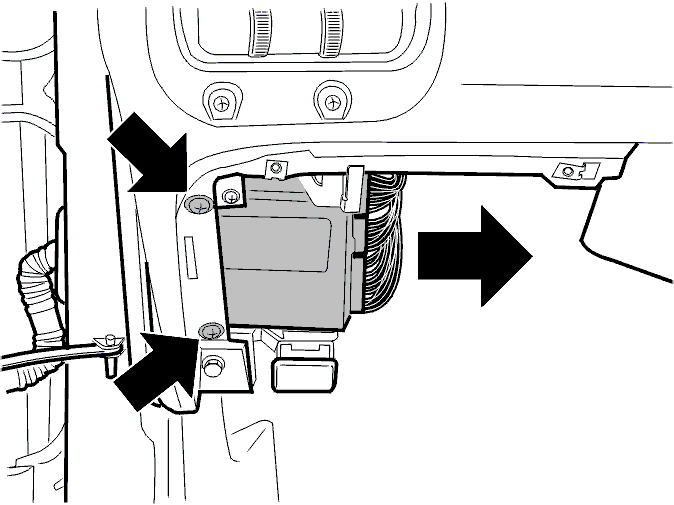

Fig 1: Removing Central Electronic Module

GLL115174

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the central electronic module (CEM).

Install two screws.
