Installing the ashtray

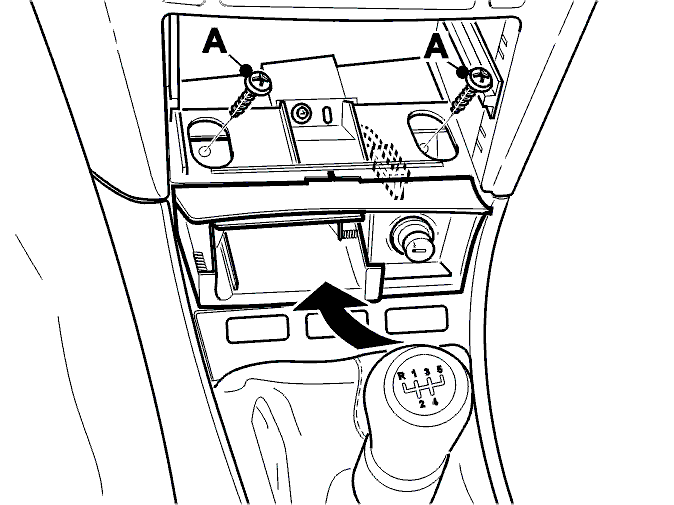

Fig 1: Installing The Ashtray

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

• the connectors for the cigarette lighter and lighting
• the bracket
• the two screws (A)
• the ashtray.
