Installing and adjusting the "airmix" control cable

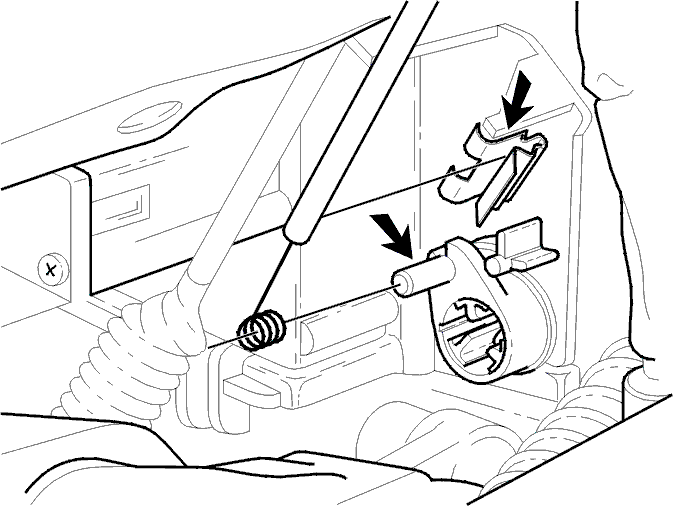

Fig 1: Removing/Installing Air Mix Control Cables

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Position the inner cable over the pin for the valve
• Set the selector to "cold"
• Slide the air valve to "cold" (lever down). Pull back the outer cable and press it into the clamp
• Check the function.
