Install the push rod for the power brake booster and the retaining clip on the brake pedal

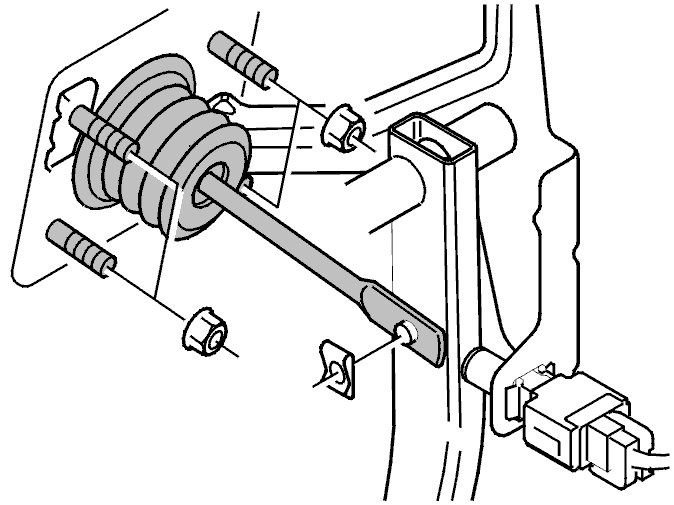

Fig 1: Installing Push Rod For Power Brake Booster And Retaining Clip On Brake Pedal
GLL104494Courtesy of VOLVO CARS OF NORTH AMERICA.

Tighten the power brake booster. Tighten to 25 Nm  .

Install the soundproofing panel.
