Removing the Control Arm

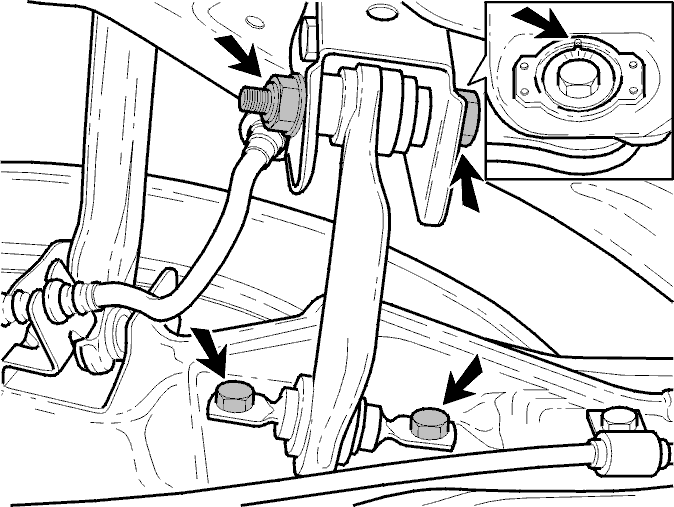

Fig 1: Lower Control Arm And Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Mark the position of the adjustment screw.

Remove:

• the two screws on the trailing arm
• the adjustment screw on the car body
• the control arm.
