Install the Control Arm

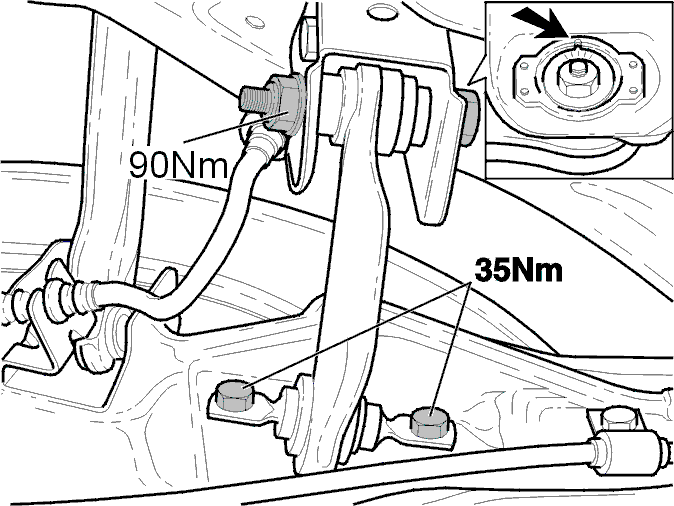

Fig 1: Identifying Control Arm On Trailing Arm And Adjustment Screw

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the control arm on the trailing arm. Tighten to 35 Nm  .

Support the control arm. Install the screw on the body side.

Install the adjustment screw in its earlier position.

Remove the support and bounce the car a few times.

Tighten the adjustment screw. Tighten to 90 Nm  .
