Installing relay
Replace relay.

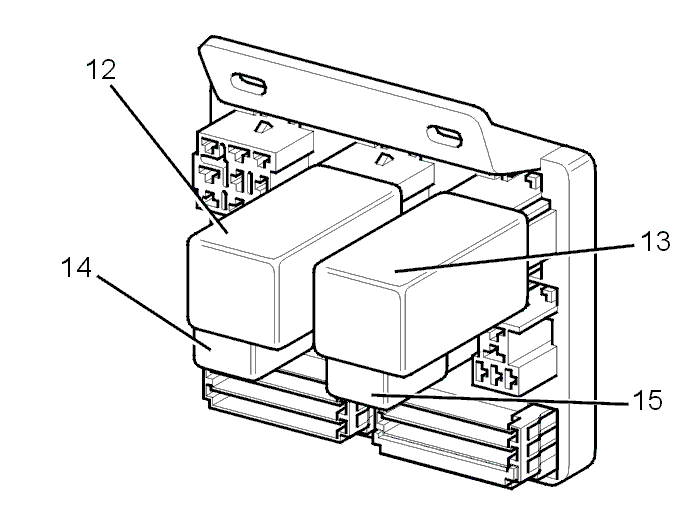

Position of relays as shown and in table below.
| Relay | Description | Comments |
| 12 | Boot lid/tailgate motor | USA/CDN |
| 13 | Seat belt reminder/ Key warning | USA/CDN and Korea |
| 14 | Window lift | USA/CDN |
| 15 | Seat belt reminder | EU/OS without Korea |
| - | Climate module | USA/CDN |
Connect battery negative lead.
- Test relay function.
Install soundproofing panel and screws.
