Replacing ignition switch antenna ring: Removing

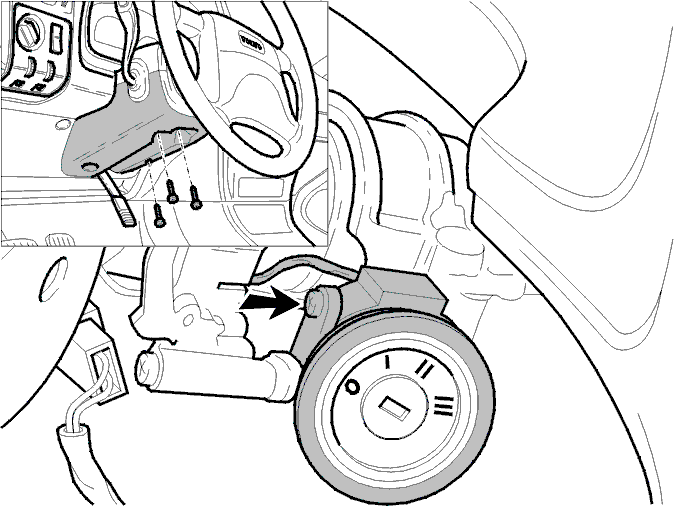

Fig 1: Replacing Antenna Ring In Ignition Switch
GLL115402Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove steering wheel cover.

Remove antenna ring connector.

Remove the screw and remove the antenna ring from the ignition switch.
