Remove the cigarette lighter

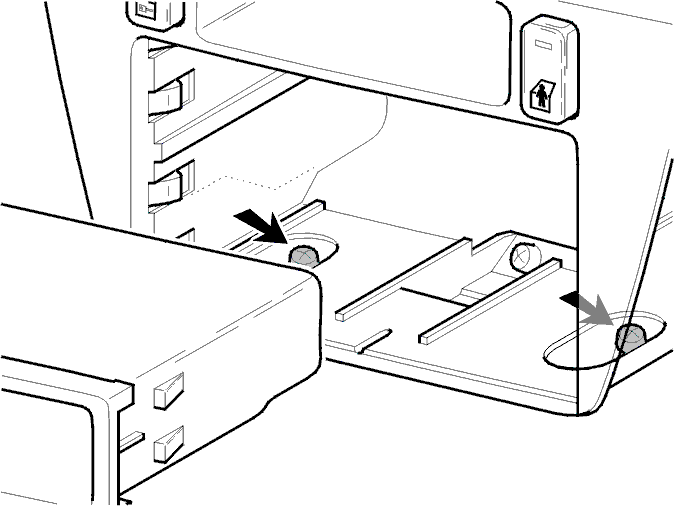

Fig 1: Screws Behind Rear Section Of Bracket

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the rear section of the bracket. Press carefully at the edge with a screwdriver.

NOTE: The radio must be pulled forward a few centimeters before the rear section of the bracket can be removed.

Remove the two screws behind the rear section of the bracket. Pull out the cigarette lighter forwards.
Disconnect the cigarette lighter connector and remove the lamp.

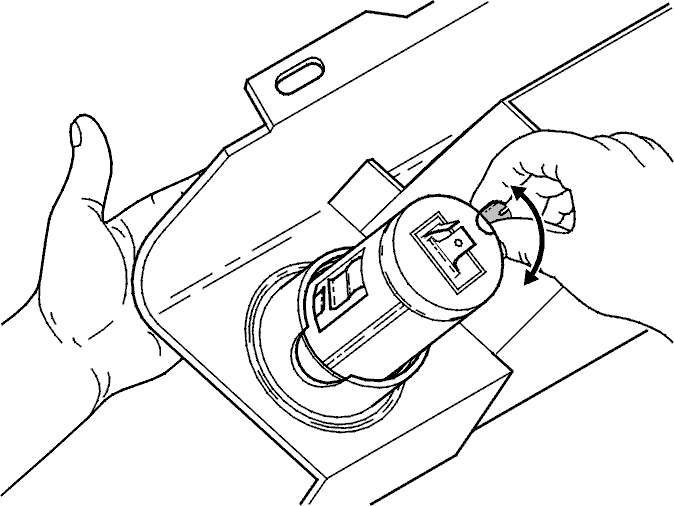

Fig 2: Bending Securing Clamps While Pressing Upwards Until They Release From Lamp Cut Out

Courtesy of VOLVO CARS OF NORTH AMERICA.

Carefully bend both the securing clamps while pressing upwards until they release from the lamp cut out.

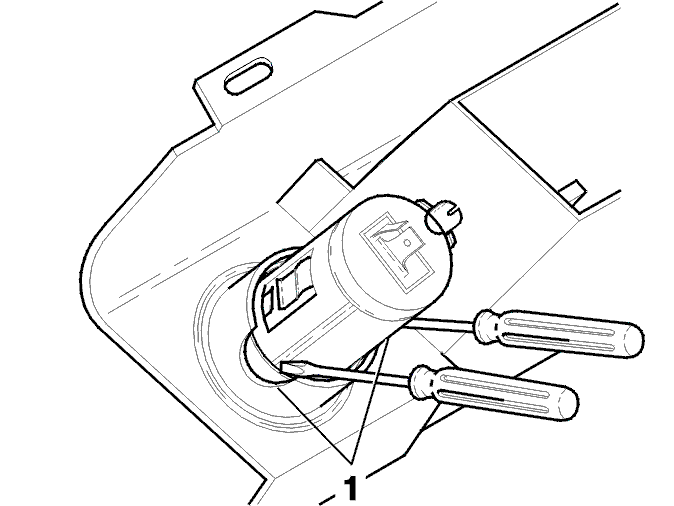

Fig 3: Pressing Securing Clamps Out Of Lamp Cutout And Carefully Pressing Out Cigarette Lighter Holder

Courtesy of VOLVO CARS OF NORTH AMERICA.

Press the securing clamps (1) out of the lamp cutout and carefully press out the cigarette lighter holder.
Remove the lamp switch.

Install in reverse order.
