Replacing rear ashtray panel switch: Removing

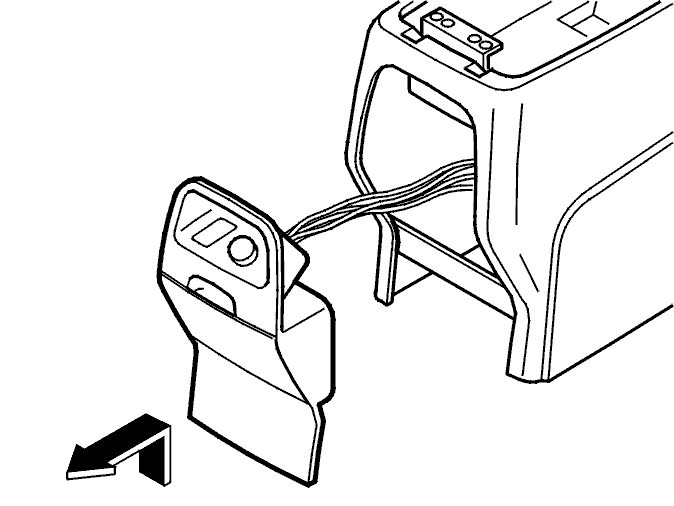

Fig 1: Replacing Rear Ashtray Panel Switch
GLL102306Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the ashtray.

Press the top of the ashtray panel upwards to release it at the bottom.

Pull the panel outwards to release the catches and pull out panel.

Disconnect connector.

Press out rocker switch from behind.
