Cable In Backrest, Replacement: Preparations: Removing

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Seat

Courtesy of VOLVO CARS OF NORTH AMERICA.

Make a note of radio code if anti-theft coded radio is installed.

Remove:

Battery negative lead.
Seat from car. See operation Seat removal .
Seat upholstery. See Backrest upholstery, replacement .
Impact protection.

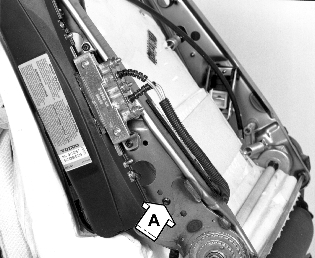

Fig 2: Identifying Motor Lower Mounting Screw

Courtesy of VOLVO CARS OF NORTH AMERICA.

Undo screw (A) securing the motor's lower mounting and twist out motor.

Fig 3: Identifying Padding Tie Strap

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the tie-strap from the padding.

Fig 4: Identifying Circlips, Screw, And Drive Gear Housing

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the circlips (A), one on each side of the drive gear housing on the transverse shaft.
Pull/tap out the transverse shaft from the drive gear housing.
Remove the tube protection
Undo screw (B) from drive gear housing.
Remove drive gear housing (C).

Fig 5: Identifying Drive Gear Housing Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the four screws.
Open the drive gear housing.
Replace cable. Check the new cable has the correct part number.
Fill drive gear housing with grease if necessary, P/N. 116 1241-3 .
