Backrest Upholstery, Replacement: Preparations: Removing

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

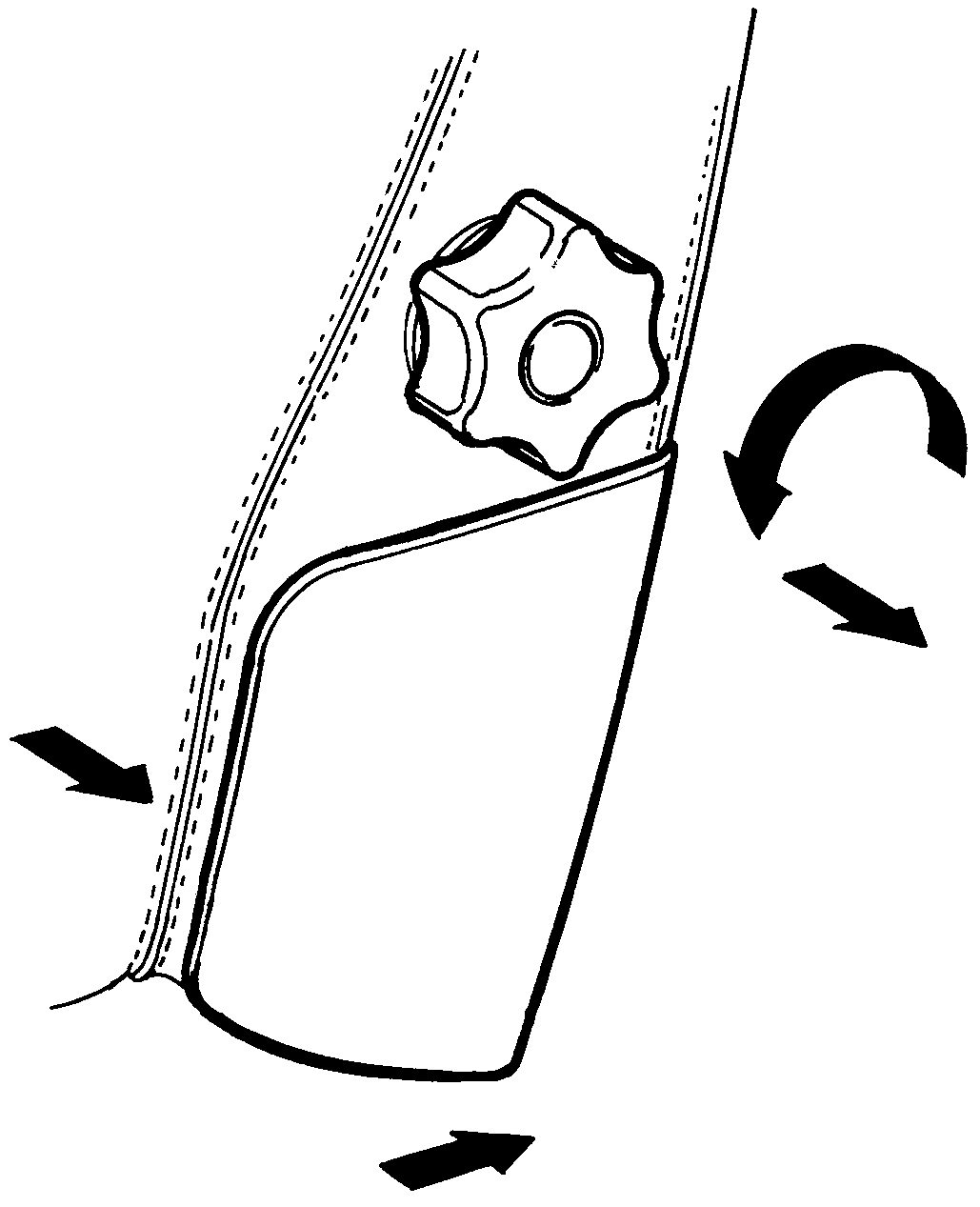

Fig 1: Unscrewing Lumbar Adjustment Knob

Courtesy of VOLVO CARS OF NORTH AMERICA.

Make a note of radio code if anti-theft coded radio is installed.
Remove battery negative lead.
Remove seat from car according to Seat removal .
Remove lumbar adjustment knob. Unscrew in a counter-clockwise direction until stop. Then continue unscrewing counter-clockwise while pulling firmly outwards.

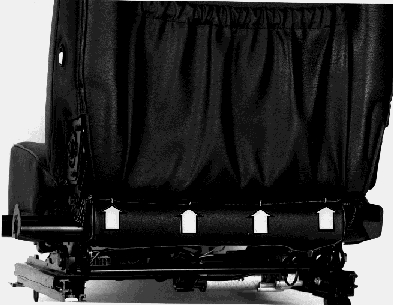

Fig 2: Locating Upholstery Clamping Hooks

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove clamping hooks (use cutting nippers) on the outside upholstery.
Stretch the upholstery sides downward so that it is released from the clamping hooks. Do not bend up the clips.
Start working off the upholstery from the seat.
Then remove all the clamping hooks between the upholstery and the seat padding.
