Install a new bushing

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

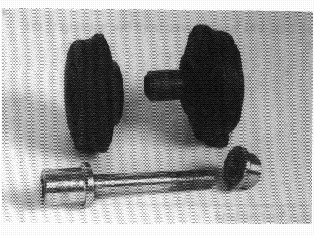

Fig 1: Identifying Bushing Halves And Special Tool 999 5503

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the new bushing halves.

Use tool 9995503 so that the conical seat under the screw head on the tool comes against the side of the sleeve to be coned (riveted). Lubricate the underside of the screw head using petroleum jelly.
