Checking Procedure

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

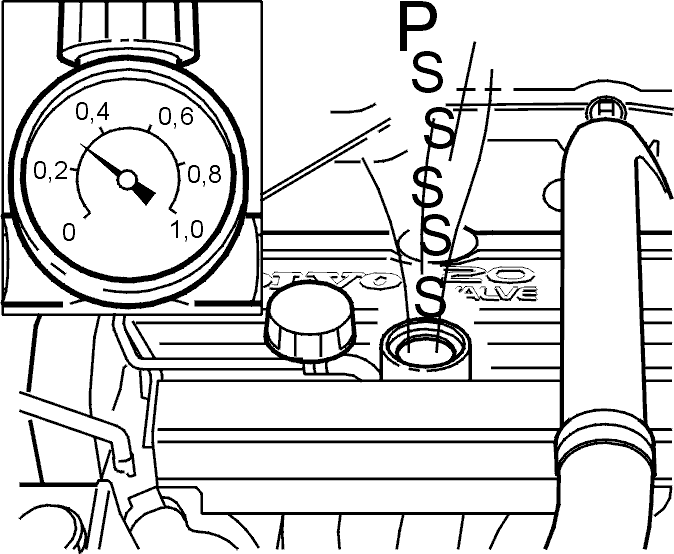

Fig 1: Identifying Gentle Hissing Sound From Oil Filler Opening

Courtesy of VOLVO CARS OF NORTH AMERICA.

Adjust regulator until pressure gauge reads max. 0.3 bar (4.35 psi).
Gentle hissing sound can be heard from oil filler opening due to opening of an intake valve and leakage of cylinder pressure past piston rings.

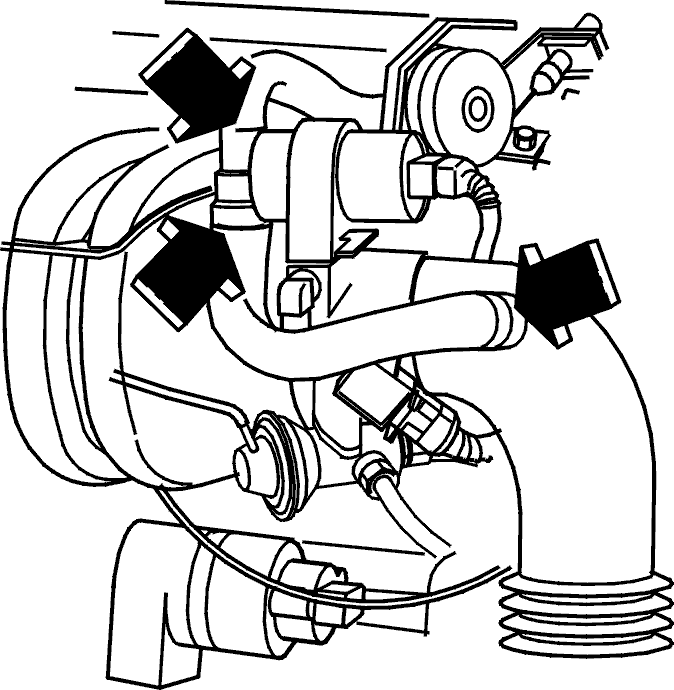

Fig 2: Identifying Connection Points For Leakage Tests

Courtesy of VOLVO CARS OF NORTH AMERICA.

Check components and connections. Refer to Checking Components and Checking Connections .
Coat connections with soapy water if unsure whether leakage is present.
Bubbles are permissible around throttle spindle.
Small bubbles are permissible between TB and intake hose (if of plastic). No bubbles are permissible with rubber hose.
Check for air leakage from EVAP valve. No leakage is permissible.
