Light switch, replacement: Removal

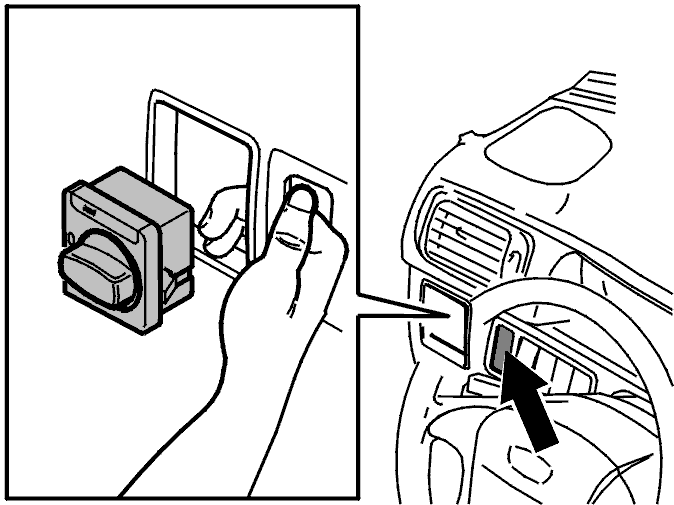

Fig 1: Removing Light Switch
GLL125077Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the switch nearest the light switch according to Replacing dashboard and tunnel compartment switches .

Position a finger behind the light switch. Press the light switch out.

Release the connector.
