Control module, replacement: Removing

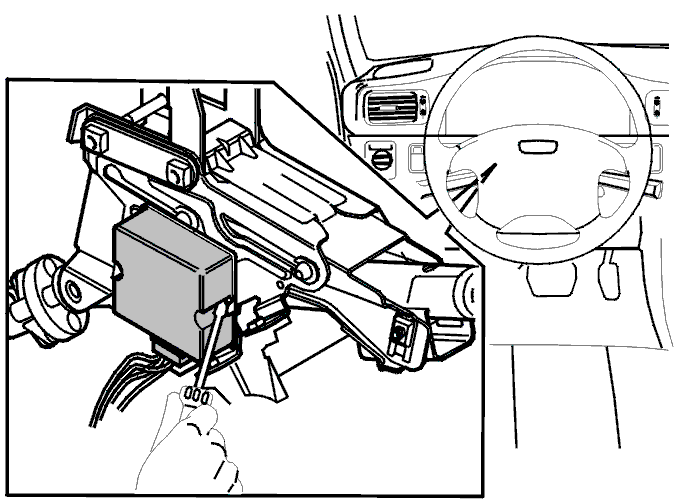

Fig 1: Removing/Installing Control Module

Courtesy of VOLVO CARS OF NORTH AMERICA.

Ignition off.

Remove:

• soundproofing panel on driver's side.
• control module with a screwdriver.
• connector from control module.
