Removing The Headlining

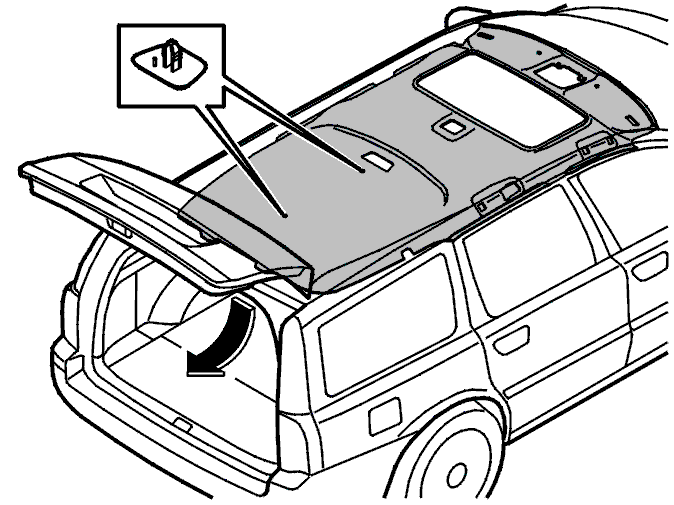

Fig 1: Removing Headlining

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• cargo compartment side panel
• The A-post panel. See Replacing the A-post panel . Disconnect the wiring
• The B-post panel. See Panel, B-post, replacing
• The C-post panel. See Panel, C-post, replacing
• The D-post panel. See Panel, D-post, replacing
• the cantrail panel
• the roof module. See Interior lighting and upper electronic module (UEM), replacing
• the sun visor. See Sun visor, replacing
• the grab handle. See Grab handle
• the rear mounting for the cargo net. See Rear mounting for the cargo net .

Pull out the headlining through the tailgate.
