Removing the left-hand level sensor

WARNING: This page is about a different variant/trim than selected.

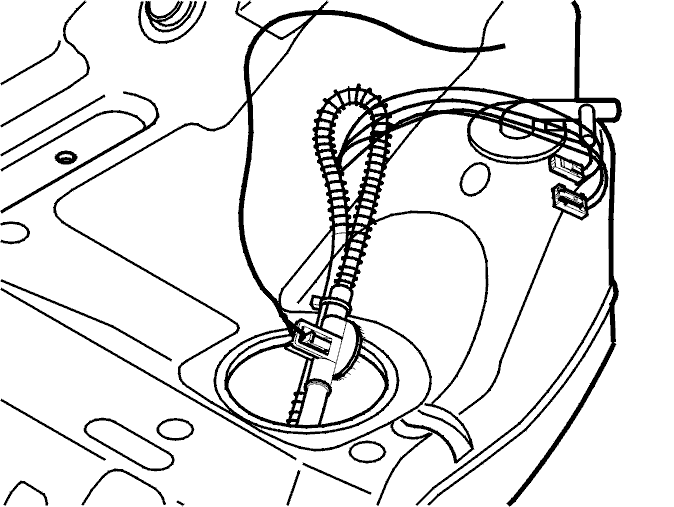

Fig 1: Left-Hand Level Sensor And Connectors

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the two connectors from the underneath of the left-hand level sensor
the left-hand level sensor from the ejector on which it is positioned.

NOTE:

Secure a wire in the area of the ejector.

The wire must be sufficiently long that it reaches over to the opposite side of the tank with some excess remaining to ensure that it does not slide into the tank. The wire is needed to pull the hoses and wiring back to the left-hand side of the tank after the fuel tank unit has been replaced.
